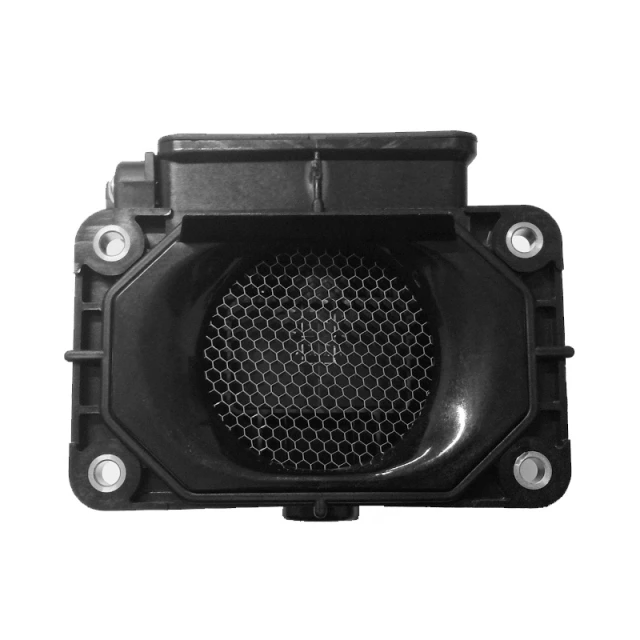

Introduction: the core value of maf sensor mitsubishi.
maf sensor mitsubishis is a key component of gas flow measurement and is widely used in automobile, industry and environmental monitoring. Its core function is to convert the physical flow of air into a quantifiable electrical signal that provide real-time data support to the system. For example:
Automobiles: Optimization of engine fuel injection to reduce emissions   (accuracy + -± 2% required for China VI standard vehicles);
Industry: control the fuel-air ratio of boilers and increase combustion efficiency   (saving 5%-15%);
Environmental monitoring: analysis of the diffusion paths of pollution sources in conjunction with PM2.5 sensors.
Market research forecasts that the global AFS market will grow from USD4.5 billion in 2023 to USD6.8 billion by 2030 at a compound annual growth rate 6.1%. Key drivers include the widespread adoption of new energy vehicles, industrial automation upgrades and stricter air quality regulations.

ii. Technical Analysis: Working Principle of Mainstream Air Sensor

1.Hot-Film MAF Sensor
How it works: The flow rate is calculated by heating the film   (platinum or nickel alloy) and measuring the heat exchange rate between the film and the surrounding air.
Structure: composed of a heating resistor, a temperature compensation resistor and signal processing circuit.
Features:
Strengths: Low cost, quick response time   (less than50ms), strong anti-pollution capability;
Weaknesses: Signal drift may occur due to particle deposition after long use of thermal film.
Purpose: Passenger car engine intake control (such as Bosch LSU4.9 series).

2. Vortex Flow Meter
How it works: Based on the Karman vortex effect --alternating vortices downstream are createdwhen water flows through an obstacle, and their frequency is proportional to the flow velocity.
Structure: composed of vortex generator, a piezoelectric sensor and signal amplifier. Features:
Strengths: Wide measurement range (0.3-1000 m/s), no moving parts, long life;
Weaknesses: Sensitive to pipeline vibration, additional vibration absorbers required.
Purpose: Gas flow monitoring of industrial boilers (e.g. the Siemens SITRANS FS230).

3. Ultrasonic Flow Meter
Principle: The velocity of flow is calculated by using the difference of propagation time of ultrasonic waves in the upstream and downstream directions.
Structure: consists of a pair of ultrasonic transducers (transmitters/receivers) and a time measurement circuit.
Features:
Advantages: High precision   (±0.5%), no pressure drop, bidirectional flow can be measured.
Weaknesses: High cost, strict requirements for medium purity   (must be free of bubbles or particles).
Purpose: Airflow monitoring in medical ventilators such as Honeywell AWM5104VN. Technology Comparison and Selection Principle
Parameters: Thermal film, Vortex, Ultrasonic
Measurement Range: 0-300g/s, 0.3-1000m/s, 0-20m/s.
Accuracy: ±1%-3%, ±1%-2%, ±0.5%-1%
Response time: <50ms, 100-500ms, 10-100ms
General Costs: 20-50, 200-500, 500-2000
Selection Recommendations:
Automotive Engines: Preferred thermofilm sensor   (cost sensitive and requires rapid response);
Industrial high flow: Vortex Sensors   (high voltage resistance, long life);
High-precision applications: Ultrasonic Sensors   (medical, laboratory).

III. Application Scenarios: Industry Practice of Airflow Sensors

1.Automotive Industry: Engine Control and New Energy Applications
Traditional fuel cars:
Thermal film Sensors measure intake air volume, and the ECU adjusts fuel injection based on that data   (e.g., Toyota's D-4S dual-injection system). Fault: Sensor signal drift can cause engine to wobble, increasing fuel consumption   (requiring regular cleaning or replacement).
New energy vehicles:
Battery Thermal Management System: Monitors cooling air flow to prevent batteries from overheating (as in the design of the Tesla Model 3 8-way valve).
Hydrogen Fuel Cell Automobiles: Controlling the hydrogen toair mix ratio to improve energy efficiency.

2. Industrial automation: Combustion Control and Cleanroom Monitoring
Boiler Combustion Optimization:
Vortex sensors combine with oxygen sensors to measure gas flow for closed-loop control (e.g., the Siemens LMV5 Combustion Manager).
Case study: A chemical plant increased boiler efficiency from 85% to 92% through flow control, saving more than $2 million a year in gas costs.
Cleanroom Ventilation:
Thermal mass flow meters monitor the air circulation system to ensure particulate matter concentrations ≤ ISO 5 (e.g., Intel chip factories).

3. Environmental Monitoring: Air Quality and Meteorological Analysis
Urban Air Quality Monitoring Station:
Ultrasonic sensors measure wind speed and direction and combine PM2.5 data to identify pollution sources, such as (e.g., Beijing's 35 national air quality monitoring stations. Weather Forecasting:
Vortex sensors measure wind speed in the atmospheric boundary layer and provide data support for typhoon path prediction (e.g., the Fengyun series of satellites of the China Meteorological Administration).

IV. INTRODUCTION Industry Trends: Future of Airflow Sensors

1. Intelligent Upgrade: Integrating Artificial Intelligence and Edge Computing
Self-diagnosis function:
Built-in algorithms analyze signal fluctuations to provide early warning of aging or blockage of sensors (Bosch's new MAF sensors with integrated vibration detection, for example).
Edge Computings:
Data preprocessing (e.g. filtration and normalization) is performed sensor side, reducing cloud transmission latency (e.g., Schneider's EcoStruxure platform).

2. Miniaturization and Low Power Consumption: Breakthroughs in MEMS Technology
Size Reduction:
MEMS hot film sensors is as small as 2mm x 2mm for wearable devices such as smartwatches with breathing monitoring.
Reduction of electricity:
Intermittent operation mode reduces standby power consumption to <1μW (e.g., Analog Devices' ADXL355 accelerometer with integrated flow monitoring). New Material Applications: Extreme-Resistant Environment
Ceramic Coating:
Alumina ceramic layer are deposited on the surface of hot film to protect against sulfur oxides corrosion in diesel exhaust (e.g., Cummins X15 engine sensor).
Self-cleaning features:
Ultrasonic vibration or laser pulses regularly remove particulate deposits (e.g., Honeywell AWM720 series).

V. Maintenance and troubleshooting: practical recommendations for extending sensor life

1. Common Fault Types and Causes
Fault Symptom Possible Causes
Zero signal: Power outage, sensor damage
Signal drift: thermal membrane pollution, the temperature compensation resistor aging
Slow response: Dust accumulates in pipes, signal processing circuit fail

2. Preventive Maintenance strategy
Wash regularly:
Thermal film sensors: The air intake is purified every 5,000 km or every 6 months using compressed air   (pressure ≤ 0.2 MPa).
Vortex sensors: Remove the vortex shedder and use a soft brush to remove any buildup   (this requires to be turned off).
Environmental control:

3. Installation of filters upstream of sensors   (filtration accuracy ≤ 5 microns) to reduce particulate matter ingress. Troubleshooting Process
Check power lines and signals:
Measure the supply voltage (usually 12V or 5V) using a multimeter to make sure there is no short circuit or open circuit.
Comparison with baseline data:
Historical data are read from the ECU using diagnostic tools to determine if the signal is abnormal   (e.g., sudden jump or persistently low value).
Replacement Verification:
After replacing the new sensor, test the system to determine the root cause of the malfunction.

VI. INTRODUCTION Verdict: Future Outlooks for airflow sensors
maf sensor mitsubishis are developing from simple measuring elements to intelligent and networked systems. In the future, as 5G and digital twin technologies become more widely available, sensors will achieve the following goals:
Full lifecycle management: data tracking and optimization from production to end-of-life;
Cross-system cooperation: combined with temperature and pressure sensors to provide a more comprehensive environmental awareness.
It is the key to improve system efficiency and reduce operating cost for enterprises to select suitable sensors and establish a perfect maintenance system.
