Blower Resistor: The "Core of Temperature Control" in Automotive Air Conditioning Systems and Troubleshooting Guide
In automotive air conditioning systems, the blower resistor is a seemingly inconspicuous but crucial component. It controls the blower motor speed by regulating the current, directly impacting the comfort of the cabin temperature. However, when the air flow speed is erratic, only high speed is available, or a burning smell occurs, the resistor is often the culprit. This article comprehensively explores this key component, covering its technical principles, applications, troubleshooting, selection guidelines, and maintenance.

I. Technical Principles: How Does Voltage Division Control Fan Speed?
1. The Core Function of the Resistor

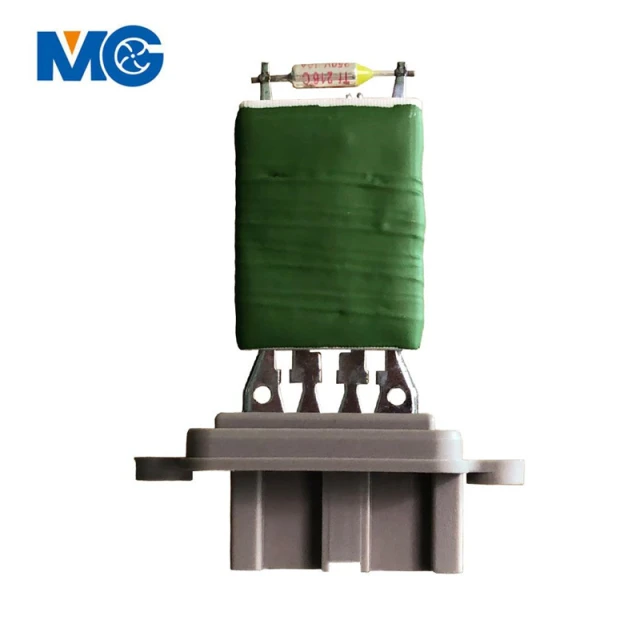

The blower resistor is essentially a variable resistor, typically connected in series between the blower motor and the power supply. According to Ohm's Law (I=U/R), changing the resistance value directly alters the current, thus controlling the blower motor speed.

Voltage Division Principle: In a series circuit, the resistor divides the voltage. Higher resistance means a larger voltage drop across the resistor, resulting in lower voltage across the blower motor and slower speed; conversely, lower resistance leads to faster speed.
Speed ​​Control Method: Traditional resistors use multiple fixed resistances (e.g., 1Ω, 2Ω, 4Ω) to switch between 3-4 fan speed levels. For example, at low speed, the current flows through all resistors (maximum resistance, lowest speed); at high speed, the resistor is bypassed, allowing the current to flow directly (lowest resistance, highest speed).
2. Comparison of Resistor and PWM Speed ​​Control
Resistor Speed ​​Control:
Advantages: Low cost, simple structure, suitable for economy vehicles.
Disadvantages: High energy loss (heat generation), fixed speed levels, low precision.
PWM Speed ​​Control (Pulse Width Modulation):
Principle: Uses high-frequency switching to control the duty cycle (on/off time ratio) of the current, achieving average voltage regulation.
Advantages: High efficiency (almost no heat generation), smooth and continuous speed control, suitable for high-end and electric vehicles.
Disadvantages: Higher cost, requires a control chip and power transistor. II. Application Scenarios: The "Invisible Guardian" from Automotive to Industrial Sectors
Blower resistor applications extend far beyond automotive air conditioning; they are widely used in various fields, with their core function being to control fan speed by regulating current.

1. Automotive Air Conditioning Systems
Function: Adjusts the airflow speed of the heater/cooler based on cabin temperature requirements. For example, high speed in summer for rapid cooling, and low speed in winter to avoid direct cold air.
Special Requirements: Must withstand vehicle vibrations, high temperatures (engine compartment can reach over 100°C), and high surge currents (up to 3-5 times the rated current during startup).
2. Industrial Ventilation Equipment
Scenario: Airflow control in factory workshops and warehouses, optimizing energy consumption and ventilation efficiency by adjusting fan speed.
Performance Requirements: Industrial-grade resistors require IP65 protection (dust and water resistance), a temperature resistance of 125°C or higher, and the ability to withstand frequent start-stop cycles.
3. Home Appliance Cooling Systems
Application: Controls the speed of computer CPU cooling fans and refrigerator condenser fans to prevent overheating.
Features: Resistors for home appliances are small, often surface-mounted, and have a temperature range of 85°C-105°C.
Case Study: A data center server uses a smart resistor to dynamically adjust fan speed based on CPU temperature, balancing energy consumption and cooling, saving 15% energy annually.

III. Fault Diagnosis: 5 Common Symptoms and Self-Check Guide
When a blower resistor malfunctions, the air conditioning system will exhibit noticeable abnormalities. Here are common symptoms and self-check methods:

1. Common Fault Symptoms
Symptom 1: Blower operates only at high speed
Cause: Internal circuit break in the resistor (e.g., solder joint failure, resistor wire burn-out), causing the low-speed circuit to fail.
Related Components: Check for loose connections between the resistor and the switch.
Symptom 2: Erratic fan speed (fluctuating)
Cause: Poor contact in the resistor (e.g., oxidation, dirt buildup), causing unstable current.
Related Components: Also check for worn-out brushes in the blower motor. Issue 3: Burning smell during operation
Cause: Overheating and burnout of the resistor (usually due to prolonged high-load operation or poor heat dissipation).
Emergency action: Immediately turn off the air conditioner to prevent a fire.
2. Self-test procedure
Tools required: Multimeter, insulated screwdriver, protective gloves.
Power off test:
Remove the resistor (usually located near the air conditioner evaporator) and measure its resistance with a multimeter.
Standard value: Compare with the specifications in the vehicle repair manual (e.g., 4Ω for low speed, 2Ω for medium speed).
Visual inspection:
Check the resistor surface for any signs of burning, cracks, or dirt.
Check the terminals for looseness or oxidation.
Repair recommendation: If the resistor is damaged, replace it with an original part (not a generic one) and clean the contact points to prevent further issues.

IV. Selection Guide: 3 Key Parameters for Matching System Requirements
Incorrect selection is a common cause of premature resistor failure. Here are the key parameters and selection logic:

1. Rated Power
Definition: The maximum power the resistor can withstand during long-term operation; it must be ≥ 1.5 times the blower motor's maximum power.
Calculation example: If the blower motor's rated power is 30W, the resistor's rated power must be ≥ 45W (e.g., choose a 50W model).
Consequences: Insufficient power can cause the resistor to overheat and burn out.
2. Resistance Range
Design logic: Determine the resistance combination based on the target fan speed settings. For example:
Low speed: 4Ω
Medium speed: 2Ω
High speed: 0Ω (short circuit)
Note: Resistance tolerance should be within ±5% to ensure accurate speed control.
3. Temperature Rating
Categories:
Standard grade: 85℃ (suitable for home appliances)
Industrial grade: 125℃
Automotive grade: 150℃-180℃
Selection criteria: Based on the operating temperature; automotive resistors must meet AEC-Q200 certification (automotive grade standard).
Material comparison:

Wire-wound resistor: High temperature resistance, low cost, but large size; suitable for traditional gasoline vehicles. Ceramic resistors: Small size, fast heat dissipation, but higher price; commonly used in electric vehicles and high-end models.
Selection formula:
Actual operating current I = √(P/R) (P is the resistor power, R is the resistance); ensure that I ≤ the rated current of the resistor.

V. Maintenance: 4 Tips to Extend Lifespan
With preventive maintenance, the lifespan of a resistor can be extended 2-3 times. Here are key maintenance strategies:

1. Regular Cleaning
Frequency: Clean every 6 months or 10,000 km (more frequently in dusty environments).
Method: Blow off dust from the resistor surface with compressed air; avoid using a damp cloth (may cause a short circuit).
2. Heat Dissipation Optimization
Add a heatsink: Attach an aluminum heatsink to the bottom of the resistor to lower the operating temperature by 10-15°C.
Thermal grease: Apply thermal grease between the resistor and the mounting surface to improve heat transfer efficiency.
3. Usage Habits
Avoid prolonged high-speed operation: Continuous high-speed operation for over 30 minutes can cause overheating; switch gears intermittently.
Pre-heating in winter: Open a window for 1 minute before starting the air conditioner to reduce initial blower load.
4. Regular Inspection
Temperature check: Use an infrared thermometer to check the resistor surface temperature annually (normal ≤ 85°C).
Resistance re-measurement: Compare with new vehicle data; replace if the resistance deviation exceeds 10%.

Conclusion
The blower resistor, though small, is crucial for the stable operation of the air conditioning system. From technical principles to selection and maintenance, every aspect requires meticulous attention. Whether for daily use by vehicle owners or design by engineers, understanding the core principles of resistors can prevent "small component, big problems." In the future, with the widespread adoption of electric vehicles and smart air conditioning, resistors will evolve towards integration and higher efficiency, but their core role in temperature control remains irreplaceable.
